Vässla Pedal

Vässla Pedal

€1.838,95
€1.910,95

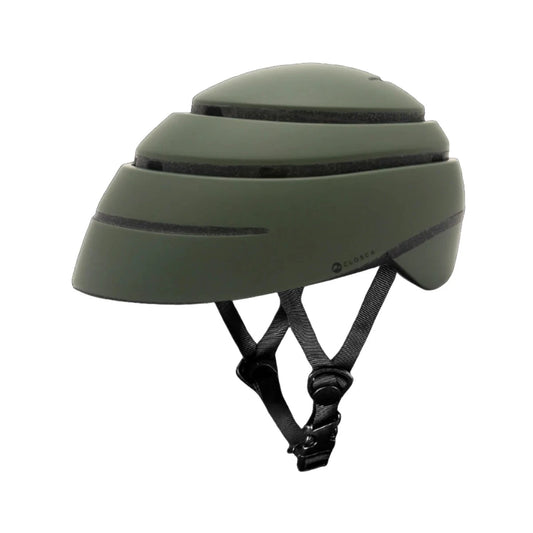

Helmet | Vässla Pedal (Size)

PedalBundleCore

This is a Sample Product Title
Was $200.00 Now $100.00
  • Pay in installments from 684 SEK/month
  • 2 years warranty
  • Delivery time 2-5 days
Show all details

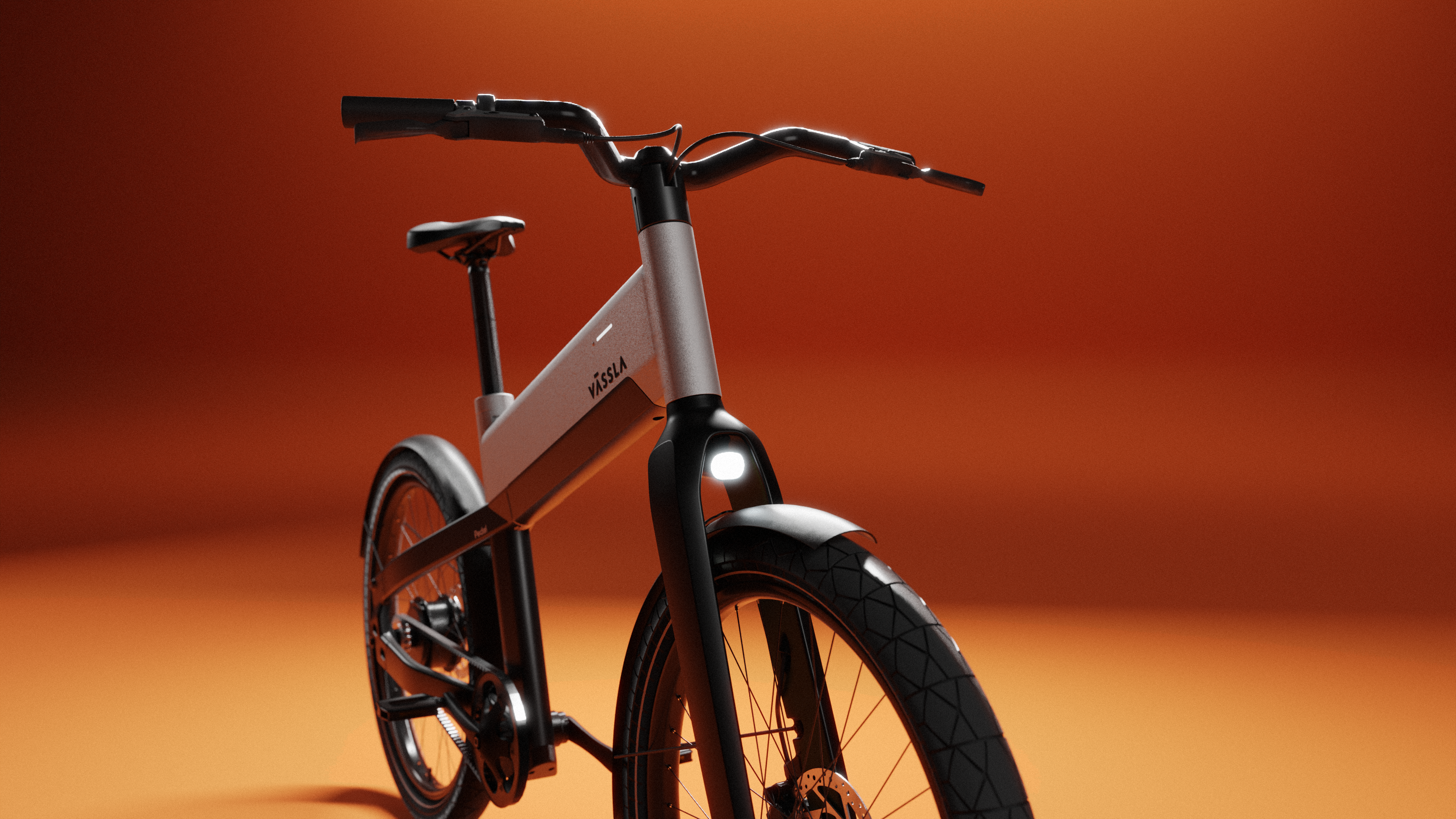

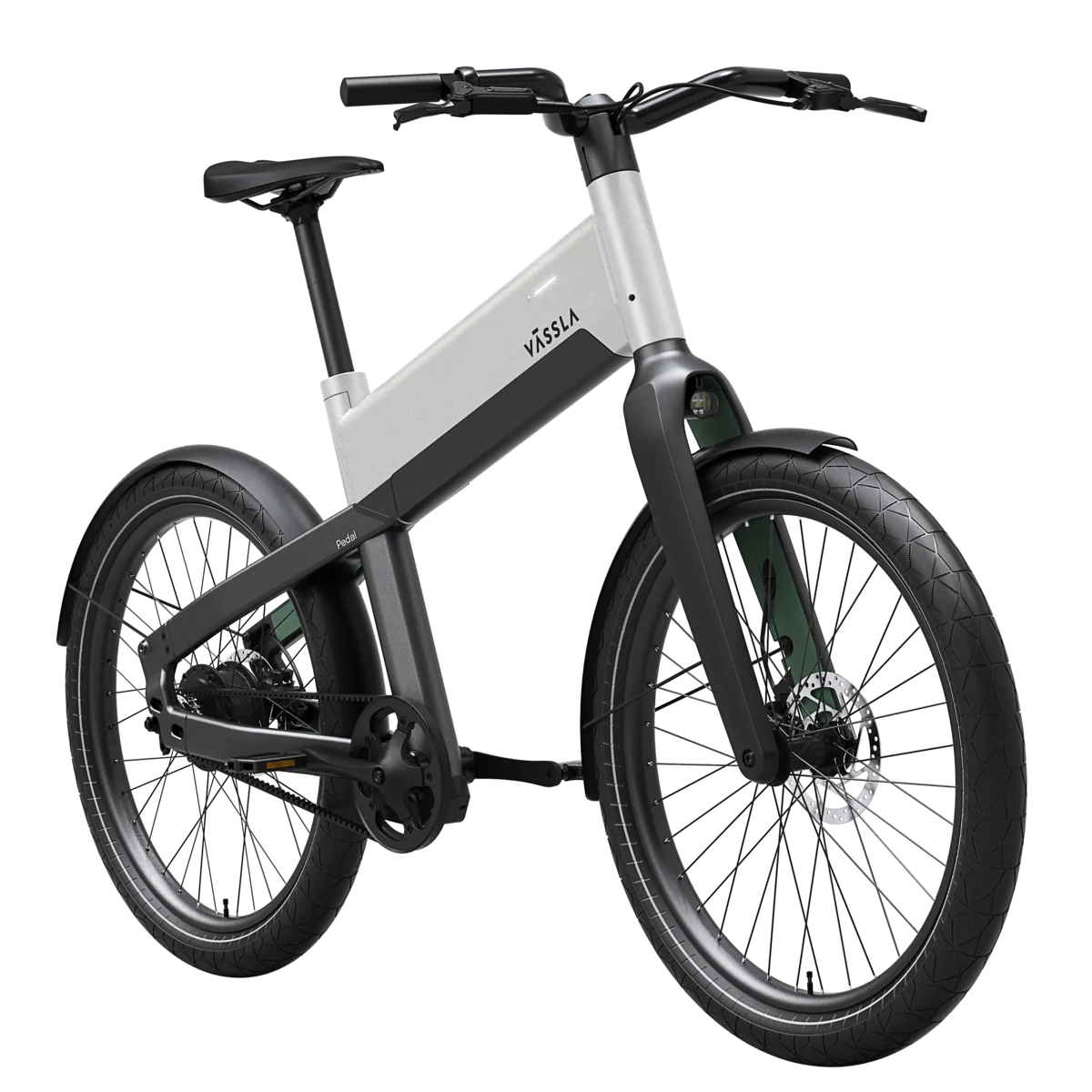

VÄSSLA PEDAL

Vässla Pedal is a bicycle that breaks conventions and sets a new standard for electric bikes. It is a work of art and a functional commuting monster in one.

  • Designed for everyone with a unisex frame and 24-inch tires.
  • Built for simplicity for user-friendliness and minimal maintenance.
  • No gears or display, just one button and you're ready.
  • Only premium components.
  • A powerful 45 Nm motor.
Bild 1
Bild 2
Bild 3

Info

🚲 Seamless Commuting: With belt drive and a smart torque sensor, Vässla Pedal offers a smooth and responsive riding experience that feels like an extension of you.

🇸🇪 Scandinavian Minimalism: Scandinavian simplicity is our secret. Vässla Pedal has no complicated gears or advanced display panels to complicate things. Just a single button and a powerful 45 Nm hub motor in the rear wheel - and you're on your way to adventure!

🌟 Award-Winning Design: Proudly designed and developed in Sweden, our Pedal was honored with Gold at the German Design Awards 2023.

🔋 Impressive Range: With an electric range of up to 80 km and a 45 Nm rear hub motor, you conquer city streets with ease.

🏢 Built for City Life: Made from lightweight aluminum, this 21 kg masterpiece is designed to handle the challenges of urban living.

🚦 Safety First: Equipped with dual hydraulic disc brakes, integrated lighting, and internal cable routing, your safety is our priority.

👫 Designed for Everyone
Women, men, short, tall - it doesn't matter! Vässla Pedal is designed to be your best fit, no matter who you are. We believe every journey should be a source of joy, and your Vässla Pedal will be your companion on that journey.

So, how about hopping on your very own Vässla Pedal and start cycling towards a greener and more fun future? Order yours here and now and discover the joy of cycling!

Specification

Range: Up to 50 km

Weight: 22 kg (including battery)

Frame type: Unisex

Battery: Removable and fully integrated 36V 9.8Ah 10s2p 350Wh

Brakes: Hydraulic disc brakes Tektro E-385

Drive: Belt drive with torque sensor

Motor: 250 W rear hub motor

Torque: 45 Nm

Lock: Pre-drilled frame mount for external lock.

Mobile holder: Pre-mounted mount for SP-connect mobile holder

Cables: Internal cable routing.

Awards: Gold in German Design Awards 2023

Development: In-house in Sweden and Germany.

Assembly: Partner in Taiwan.

Warranty: 2 years

Accessories

Included in the package

- Kickstand.
- Charger.
- Mudguards.
- Battery

Other accessories

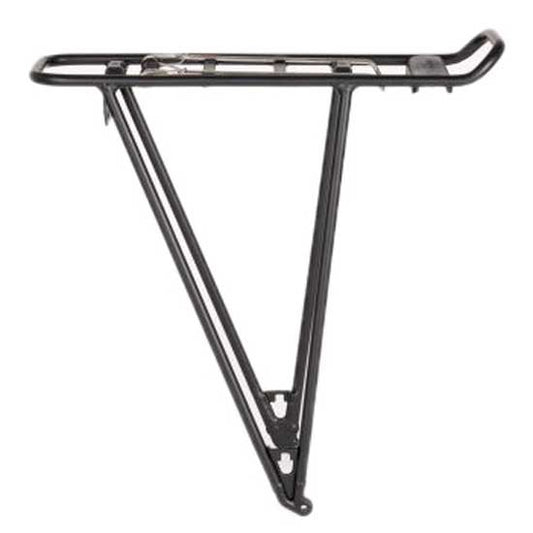

Carrier rack rear.

Our carrier racks are compatible with ATRANVELO's patented click system "AVS". A wide range of accessories are therefore available from the start.

Of course, you can attach a Child Seat to Vässla PEDAL.

Service

We recommend contacting the nearest bike workshop for service or repair.

The bike workshop makes an initial assessment of the problem; usually, they can handle all cases.

In the unlikely event that it is an electrical fault/warranty issue, we at Vässla will be involved to resolve it with the workshop.

See all our service partners here

Features

Gender: Unisex

Frame type: Step-through

Vehicle type: Electric assisted bicycle

Speed: 25 km/h

Wheel size: 24"

Weight without battery: 19 kg

Battery weight: 3 kg

Frame material: Aluminum

Front fork material: Carbon fiber

Motor type: Hub motor in rear wheel

Motor model: Limotec, Vässla specific.

Motor power: 250 W

Motor torque: 45 Nm

Maximum incline: 10% (depending on rider's weight)

Battery type: Removable Li-ion battery pack

Battery cells: Samsung 21700, 10s2p = 2 pairs of cells connected in parallel, hence "p", and these 2 pairs are then connected in series, which "s" refers to. = total 20 cells.

Battery capacity: 360 Wh

Charger model: Sans Electronics SSLC

Charging voltage: 42V, 3A

Charger indicator - Green light = ready to charge, Red light = charging.

Range: Up to 100 km

Front fork: Carbon fiber

Gear: Single gear system

Drive: Carbon fiber belt

Brake type: Hydraulic disc brakes

Brake model: Tektro E-385

Handlebars: Vässla custom made

Grips: OXO GRIP LOCKABLE Comfort

Handlebar stem: Vässla custom made

Saddle model: Velo VL-3533

Seat post: Vässla custom made

Front light model: Lezyne HECTO STVZO E65

Front light power: 4W, 210 lumens, 65 Lux

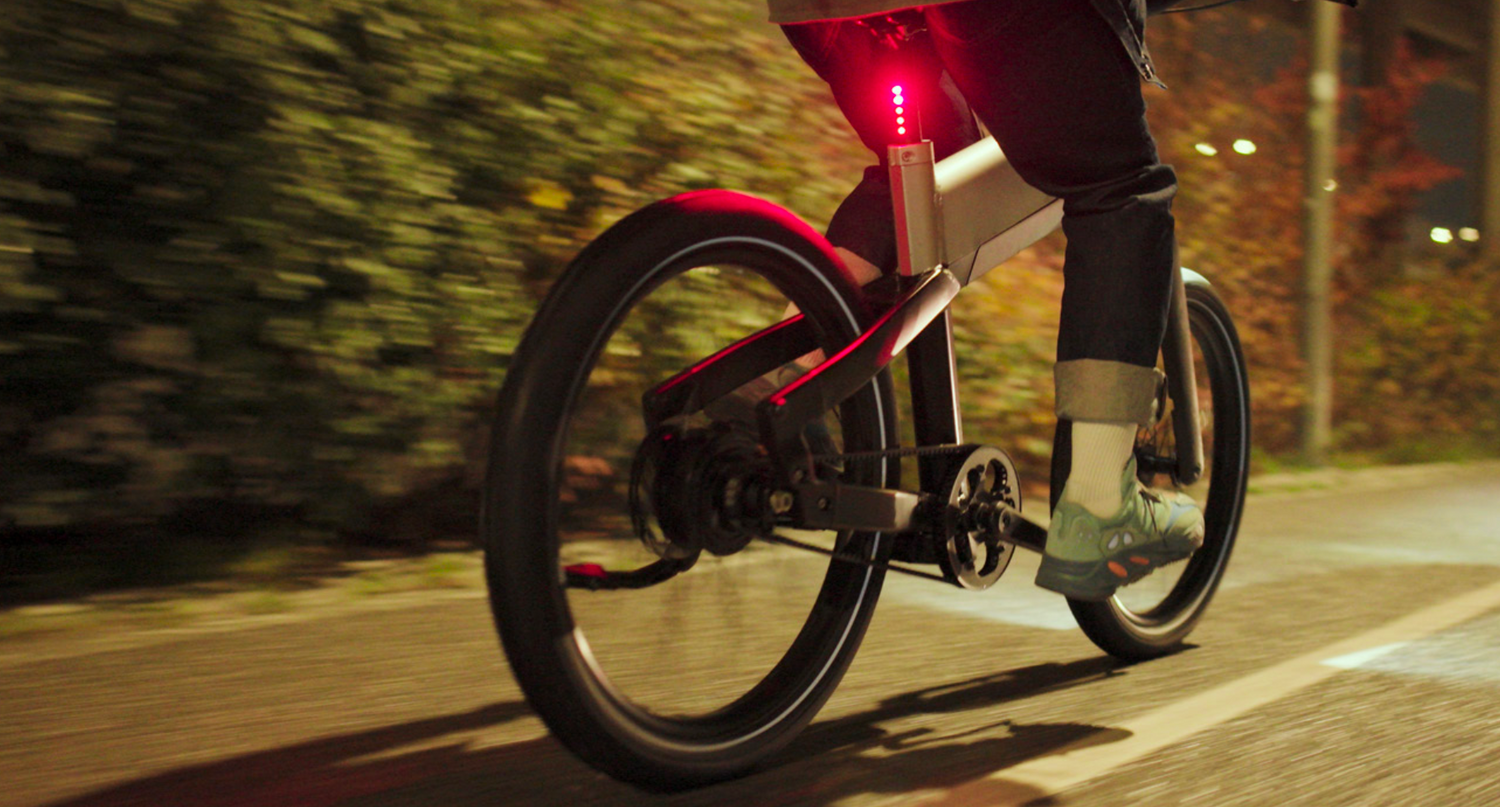

Rear light: Integrated LED lights in seat post, Vässla custom made

Tire size: 24"

Tire model: CST C1381, 24"*2.4, 61-507

Inner tube type: Black, puncture-resistant inner layer, with reflective strip

Battery operating temperature: Charging: 0~40°C, discharging: -20~50°C

Storage temperature: -20~60°C (one month)
-20°C ~45°C (3 months)
-20°C ~23°C (1 year)

Lifetime: 500 cycles 0-100% (1000 cycles 50-100%)

SOC, battery charge status light: - Red blinking light <=32V 10%
- Red light >=34V 20%
- Green light >=36V 40%
- Blue light >=37V 50%

No hill too steep

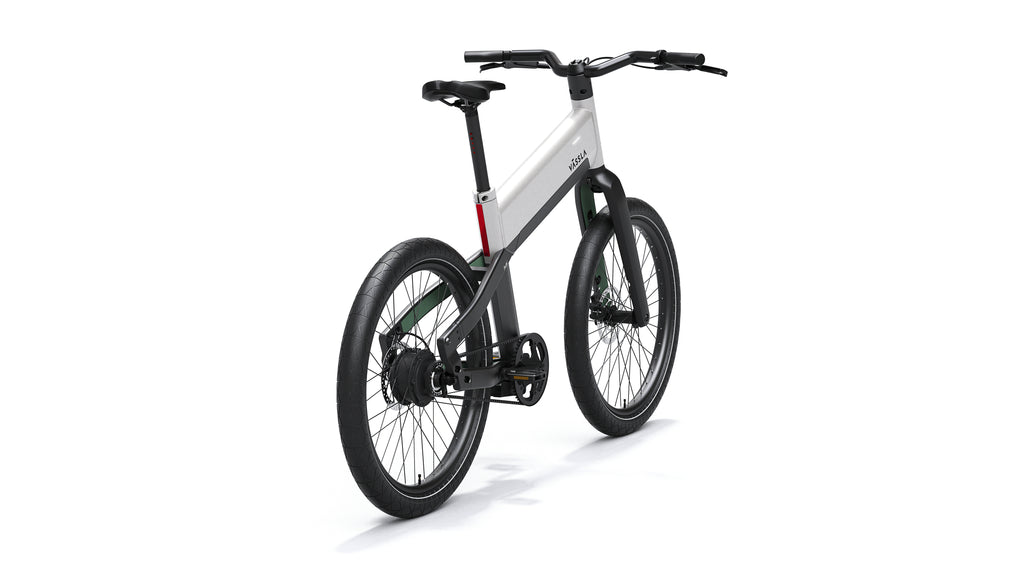

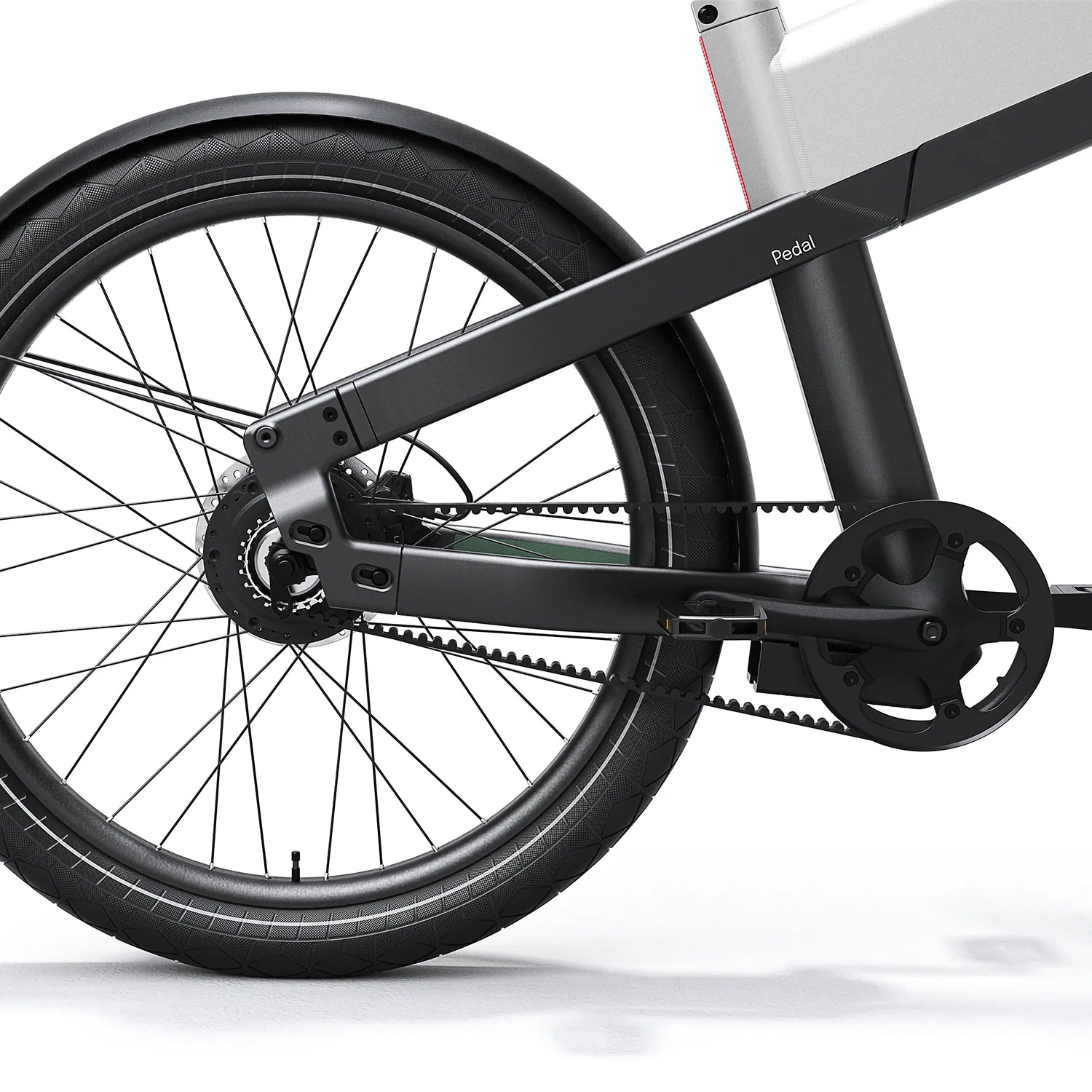

At the rear wheel of the Vässla Pedal is the powerful 250W/45Nm rear hub motor. Since there is more weight at the back of a bike, we have chosen to have rear-wheel drive on our Pedal. This provides more grip on uneven surfaces, thereby minimizing the risk of skidding and delivering better forward power.

The powerful torque helps you get through even the steepest hills with ease. With three assistance levels, you choose how much effort you want to put into pedaling, making it the perfect bike for all types of rides.

Safety is also a top priority, which is why we have equipped the Vässla Pedal with hydraulic dual-action disc brakes from Tektro, ensuring that you can stop in an instant when you need to.

The commuter in focus

The electric bike has been specially designed so that you can cycle in the most optimal posture possible. The 60° seating position helps reduce pressure on your wrists and lessen the strain on your neck, which means you can enjoy your bike ride longer without discomfort.

Whether you commute to work, run errands in town, or just enjoy a leisurely bike ride, Vässla Pedal will make your riding experience more enjoyable than ever before. So why not upgrade your ride and experience the ultimate riding comfort with Vässla Pedal today?

For a smooth everyday life

Riding an electric bike is an excellent way to lower the barrier to getting out and moving. With Pedal, you can enjoy the ride without feeling like you're exerting yourself too much. Say goodbye to the tough journey and hello to the smooth bike ride!

The design of Vässla Pedal

Vässla collaborated with product design genius Christian Zanzotti to develop the Vässla Pedal. His broad field of work ranges from cars and mobility to furniture, consumer goods, and lifestyle products, and he has previously worked with international clients such as BMW.

Our internal development and design studies challenge the status quo in materials and manufacturing techniques, which in turn form the foundation for Vässla's groundbreaking product development.

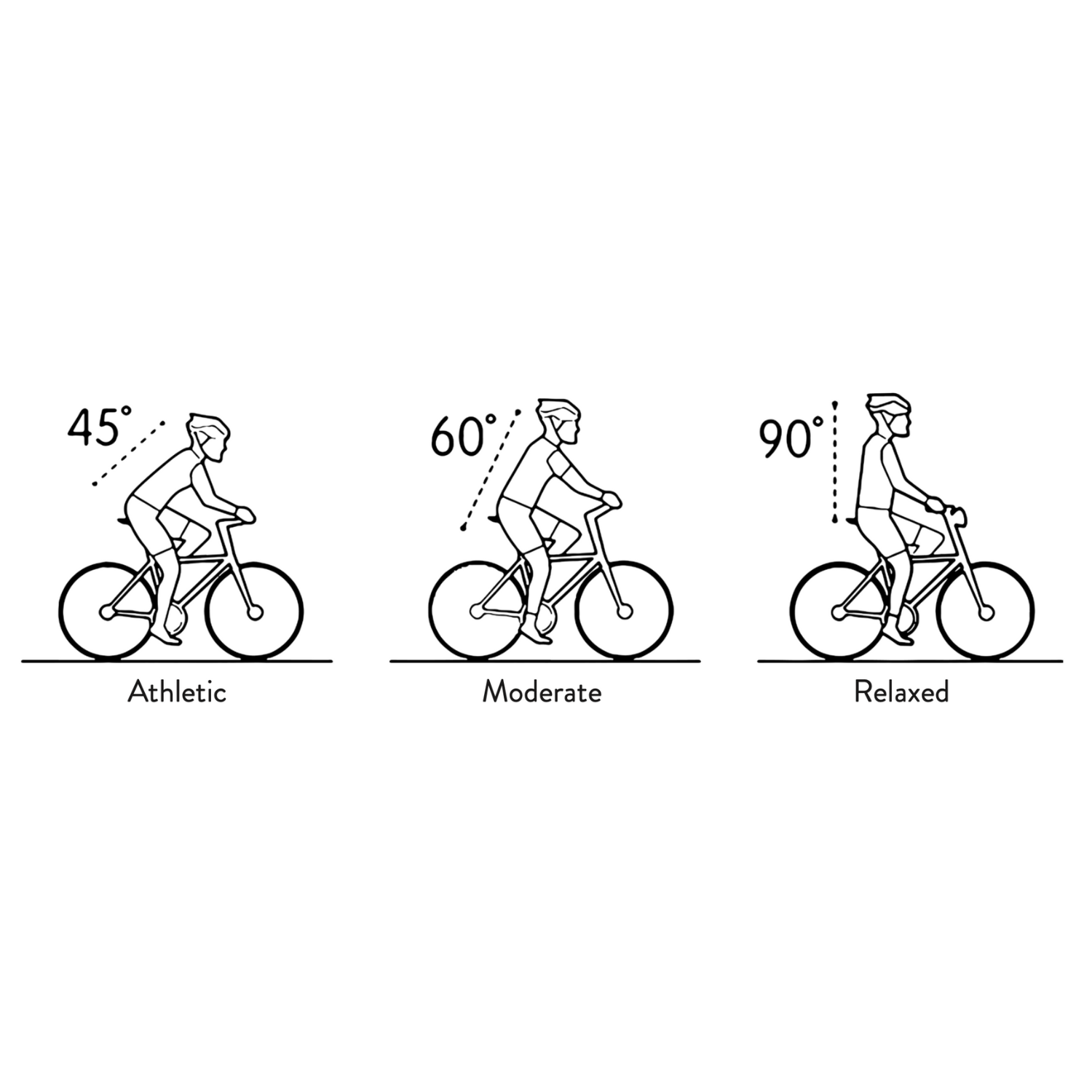

We feel best at 60°

With its moderate seating position, Vässla Pedal provides an optimal ergonomic riding experience. Designed to make your ride more comfortable and enjoyable by putting less pressure on the wrists or straining the neck. With its semi-step frame, Vässla Pedal makes it possible to ride a bike, regardless of height or body type.
